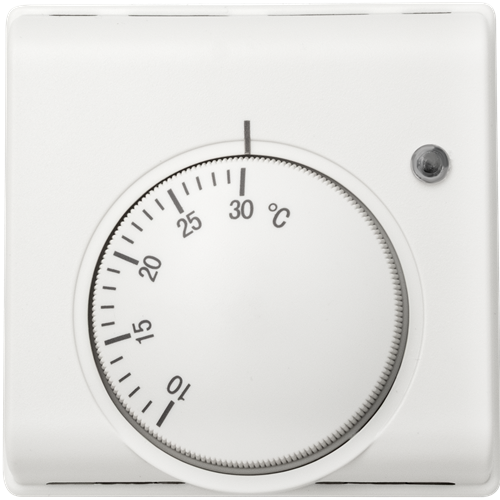

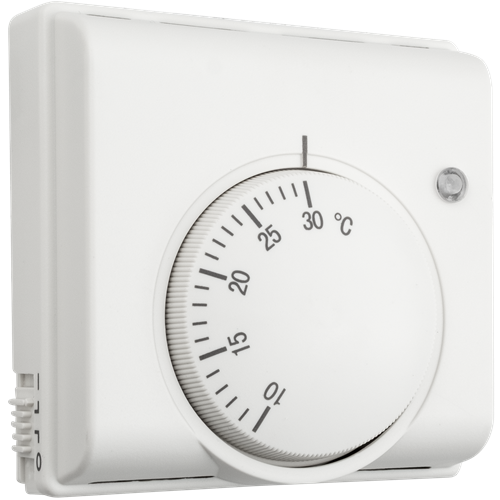

MKT.2011 It is a mechanical thermostat used for combi boilers or underfloor heating systems. It can be used for heating or cooling control with its double output feature.
| Operation Temperature | 1 |
| Storage Temperature | 10°C-30°C [50°F-86°F] |
| Protect Class | IP30 |
| Mounting Method | Wall mounting with screws |
| Dimension | L84xW84xH39 mm |
| Weight | 200g |
| Control | Temperature |
| Relay Current Capacity | Max 2A |
| Heat Range | 10°C-30°C [50°F-86°F] |
| Supply | 230 VAC ±10% , 50/60 Hz |
| Outputs | 230 VAC (Thermostatic) |
| Connection | Terminal Block 0,5.....1,5 mm2 |
