Touch Button 0-10V Fan Coil Thermostat Thermostats_Touch Button 0-10V Fan Coil Thermostat

Product Code: SCT.2421.T
Product Color, White/Black
Outputs Type, 1 Pcs. 0-10V (Fan) / 2 Pcs. Relay Valve
Operating Buttons, Touch Button (Capacitive)
Communication, No
Display, BlackLCD Display
Supply Voltage, 24VAC/DC
Installation , Wall Mount
Protect Class	, IP20 According to EN 60529 Standard
Measured Value , No
Weekly Program, Yes
Measured Value , Temperature
For more information about the product;

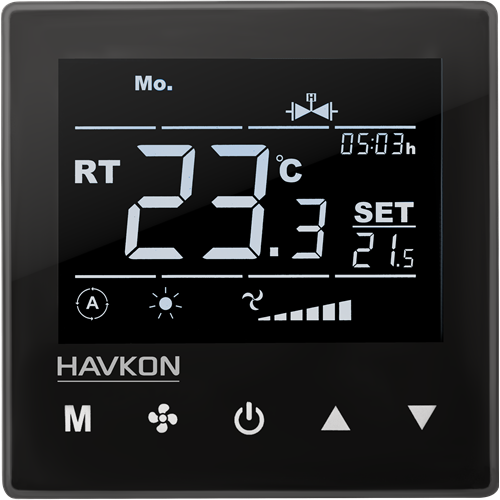

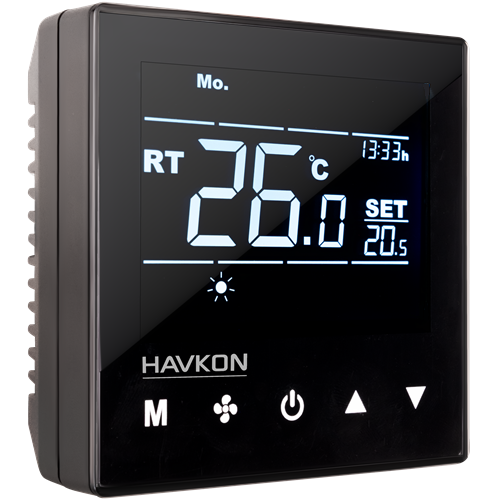

Touch Button 0-10V Fan Coil Thermostat

SCT.2421 with 3.2” LCD screen; It is produced for


fancoil units with EC fan with touch button. With its luxury design


and touch keys, it is the most preferred model in the smart


thermostats class, which is an integral part of our daily life. With


its ergonomic design, it is suitable for offices, hotels, hospitals


and public buildings. It is designed and developed for use in 2


and 4 pipe systems. Our SCT.2421 model provides 0-10V


output signal to control EC fans. It provides ease of use with its


clock and weekly time program. It has 24 V AC/DC energy


supply and surface mounting feature.

Technical Specification

Environmental Features
Operation, Storage Temperature0... +40°C/0... +50°C (No Condensation)
Protect ClassEN 60529, IP56
Packet
Mounting MethodWall mounting with screws
DimensionL86xW86xH40 mm
Weight140 gr
Electrical Spesification
Control2 Relay Outputs
Relay Current CapacityMax. 2A
Heat Range
Supply24VAC/DC
Outputs0-10V (Max.5mA)
Power ConsumptionMax 3VA
ConnectionTerminal Connektor 1,5 mm2
