Touch Button Fancoil Thermostat with Modbus-RTU Communication Thermostats_Touch Button Fancoil Thermostat with Modbus-RTU Communication

Product Code: SCT.2350.T.M
Measured Value , Temperature
Weekly Program, Yes
Measured Value , No
Protect Class	, IP20 According to EN 60529 Standard
Installation , Wall Mount
Supply Voltage, 230VAC
Display, BlackLCD Display
Communication, Modbus-RTU
Operating Buttons, Touch Button (Capacitive)
Product Color, White/Black
For more information about the product;

Touch Button Fancoil Thermostat with Modbus-RTU Communication

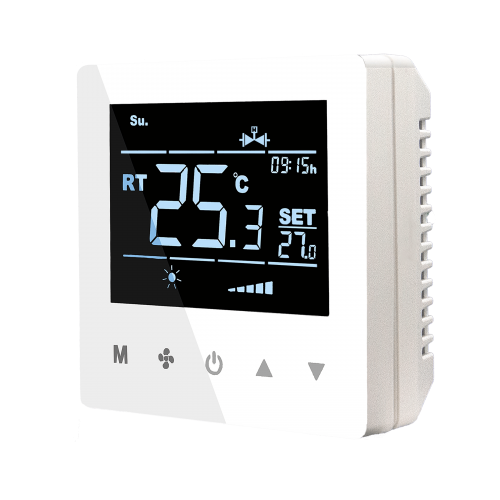

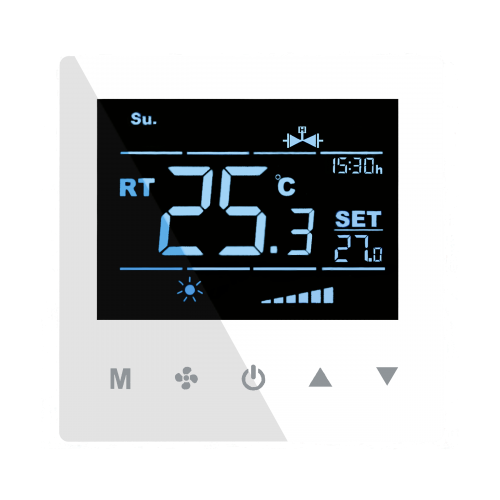

SCT.2350 series fan coil thermostat with touch buttons and 3.2” LCD screen. It is produced for FCU systems. With its luxury design and touch keys, it is the most preferred model in the smart thermostats class, which is an integral part of our daily life. With its ergonomic design, it is suitable for offices, hotels, hospitals and public buildings. It is designed and developed for use in 2 and 4 pipe systems. It uses Modbus RTU communication for connection to Building Automation. It can be stopped at the day and time interval determined by the clock and weekly schedule. It has 230 VAC energy supply and surface mounting feature.

Technical Specification

Environmental Features
Operation, Storage Temperature0... +40°C/0... +50°C (No Condensation)
Protect ClassEN 60529, IP56
Packet
Mounting MethodWall mounting with screws
DimensionL86xW86xH40 mm
Weight140 gr
Electrical Spesification
Control5 Relay
Relay Current CapacityMax 2A
Heat Range
Supply230 VAC
Outputs5 Digital Outputs
Power ConsumptionMax 3VA
ConnectionTerminal Connektor 1,5 mm2
