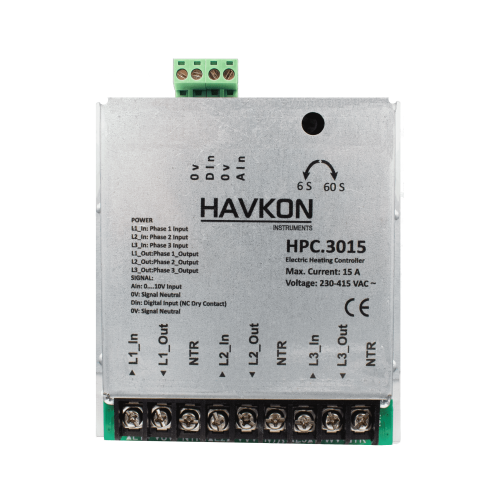

HPC.3015 Digital Three-Phase Heater Controllers are designed for proportional control of three-phase resistive heaters. HPC.3015 Series Digital Three-Phase Heater Controllers are used in many heater control applications such as building automation, air handling unit, duct type heater, where high-power resistive loads are proportionally controlled from a different automation point via the Rs-485 line with Modbus-Rtu protocol. Maximum load capacity is 15A.
-Central System Control (Modbus-Rtu)
-Trip-phase electrical resistance driving
- Proportional heater riding applications
-Duct Type Heater Applications
-Air Unit Heater Applications
-Dry Contact Entry Device Stop
| Operation Temperature | 0... +50°C |
| Storage Temperature | -20... +70°C |
| Protect Class | IP20 |
| Packet | Metal |
| Mounting Method | Wall mount |
| Dimension | L115xW135xH72mm |
| Weight | 682 gr. |
| Control | Modbus-RTU |
| Relay Current Capacity | Max. 15A |
| Heat Range | 0... +50°C |
| Supply | AC380V ±10% , 50/60 Hz |
| Outputs | Pwm Time Based(On/Off) |
| Power Consumption | Max. 3VA |
| Connection | Connector 2.5mm² |
