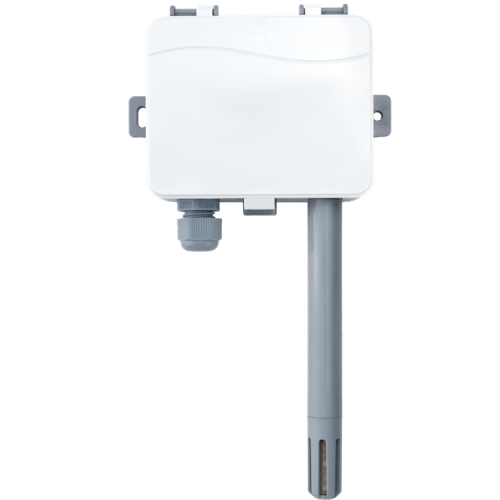

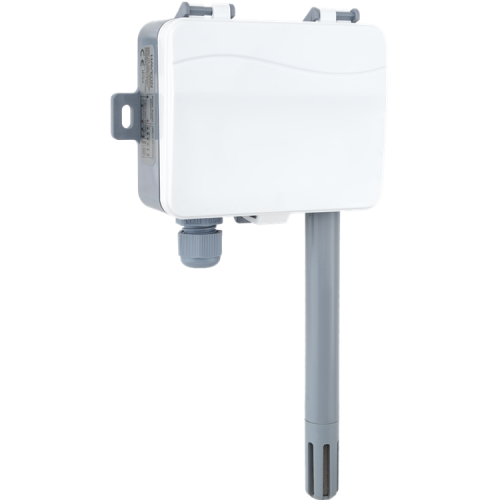

WMT.HT.1021 wall type temperature transmitter is used in many applications such as air handling units where humidity and temperature are monitored or controlled, hygienic air conditioner, pool dehumidification unit, greenhouses, storage areas, laboratories and data centers.
| Operation, Storage Temperature | -20 ... +80°C (No Condensation)) |
| Protect Class | EN 60529, IP56 |
| Mounting Method | Wall mount |
| Dimension | L100xW80xH40 mm |
| Weight | 140 gr |
| Heat Range | -40°C… 105°C [-40… 221°F] |
| Supply | 24VAC/DC |
| Outputs | 0-10V/2-10V/0-20mA/4-20mA |
| Power Consumption | Max 3VA |
| Connection | Terminal Connektor 1,5 mm2 |
