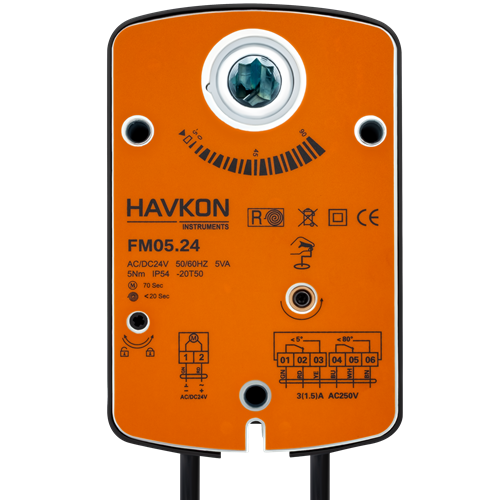

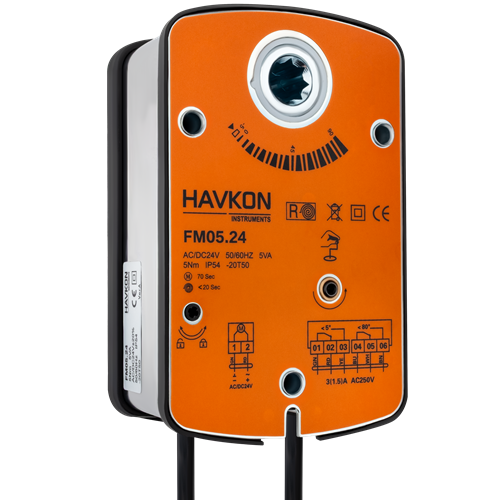

Fm series fire smoke damper aktuator;
-Models with torques of 5, 10, 20, 40 Nm
-Open / Close, floating control and proportional control
-24 V AC / DC and 230 VAC models
-Direct mounting to the damper shaft
-Rotation switch
- Limited rotation angle
-Manual control facility
-Protected against strain
| Operation, Storage Temperature | -40 ... +70°C (No Condensation)) |
| Protect Class | EN 60529, IP56 |
| Control | 2 and 3 Points On/Off Control |
| Heat Range | -20 to +50°C (No Condensation) |
| Supply | 230 VAC ±%10 ,24 VAC/DC±%10 , 50/60 Hz |
| Power Consumption | 7,5W/2.5W |
