Digital Fan Coil Thermostat Thermostats_Digital Fan Coil Thermostat

Product Code: FCT.2350.T
Measured Value , Temperature
Measured Value , No
Installation , Wall Mount
Supply Voltage, 230VAC
Display, Blue LCD Display
Product Color, White
Communication, No
Operating Buttons, Push Button
For more information about the product;

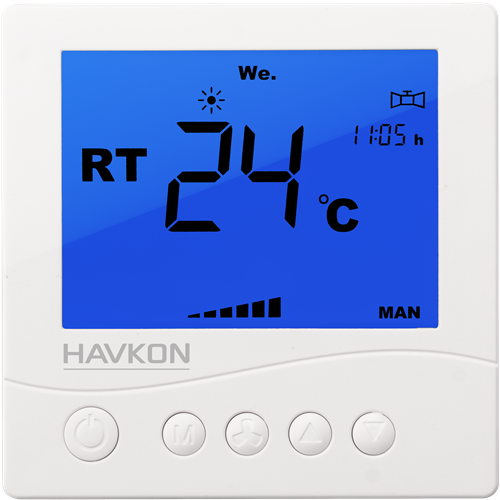

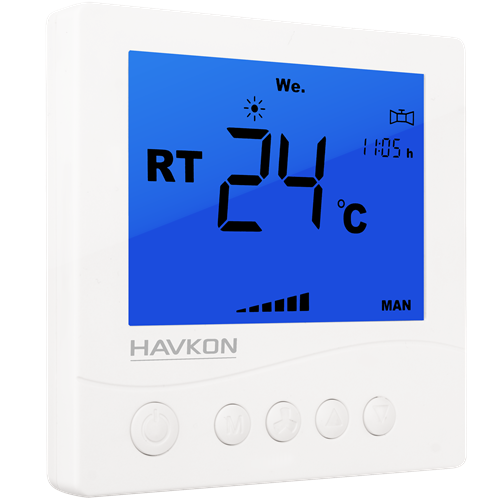

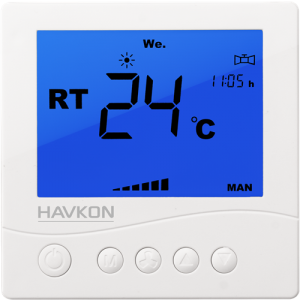

Digital Fan Coil Thermostat

FCT.2350 series fan coil thermostats with 3.2” LCD screen are produced for FCU systems with internal temperature sensor, 3-stage fan and 2-stage heating/cooling relay output. With its luxury design it is the most preferred model in the smart thermostats class, which is an integral part of our daily life. With its ergonomic design, it is suitable for offices, hotels, hospitals and public buildings. It is designed and developed for use in 2 and 4 pipe systems. It can be stopped at the day and time interval determined by the clock and weekly schedule. It has 230 VAC energy supply and surface mounting feature.

Technical Specification

Environmental Features
Operation, Storage Temperature0... +40°C/0... +50°C (No Condensation)
Protect ClassEN 60529, IP56
Packet
Mounting MethodWall mount
DimensionL100xW80xH34 mm
Weight130 gr
Electrical Spesification
Control5 Relay Outputs
Relay Current CapacityMax 1A
Heat Range
SupplyAC230V ±10% , 50/60 Hz
Outputs
Power ConsumptionMax 3VA
ConnectionTerminal Connektor 1,5 mm2
