PRODUCTS

Digital Fan Coil Thermostat Thermostats_Digital Fan Coil Thermostat

Product Code: FCT.2310.T
Outputs Type, 1 Pcs. VAV/Valve
Operating Buttons, Push Button
Communication, No
Product Color, White
Display, Blue LCD Display
Supply Voltage, 230VAC
Installation , Wall Mount
Protect Class	, IP20 According to EN 60529 Standard
Weekly Program, Yes
Measured Value , Temperature
For more information about the product;

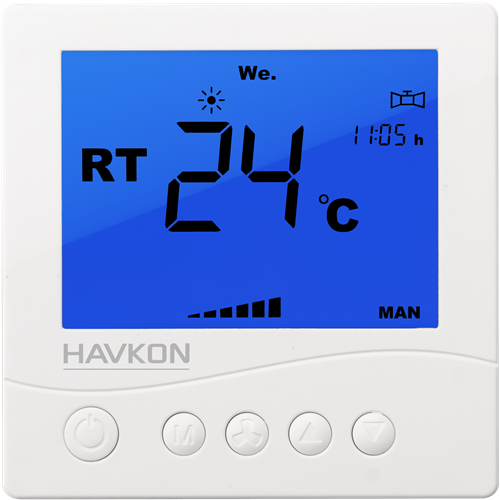

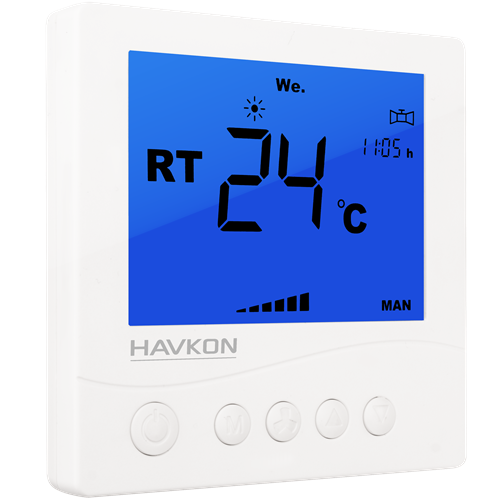

Digital Fan Coil Thermostat

FCT.2310 series fan coil thermostats with 3.2” LCD screen are produced for FCU systems with internal temperature sensor,, heating/cooling relay output. With its luxury design it is the most preferred model in the smart thermostats class, which is an integral part of our daily life. With its ergonomic design, it is suitable for offices, hotels, hospitals and public buildings. It is designed and developed for use in 2 and 4 pipe systems. It can be stopped at the day and time interval determined by the clock and weekly schedule. It has 230 VAC energy supply and surface mounting feature.

Technical Specification

Environmental Features
Operation, Storage Temperature0... +40°C/0... +50°C (No Condensation)
Protect ClassEN 60529, IP56
Packet
Mounting MethodWall mount
DimensionL86xW86xH34 mm
Weight130 gr
Electrical Spesification
Control1 Relay Outputs
Relay Current CapacityMax 1A
Heat Range
SupplyAC230V ±10% , 50/60 Hz
Outputs
Power ConsumptionMax 3VA
ConnectionTerminal Connektor 1,5 mm2
