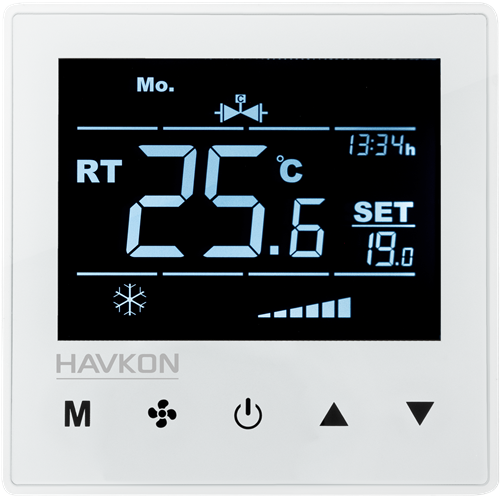

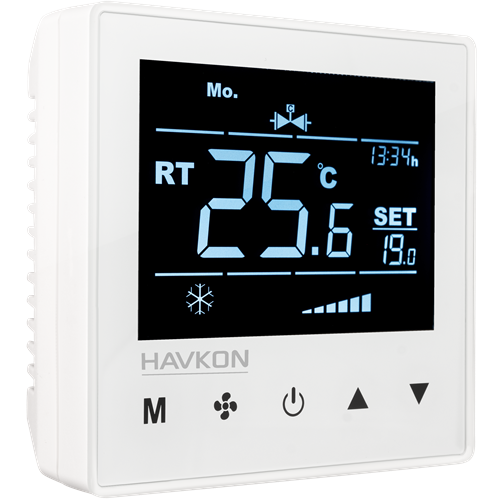

VAV/Fan Coil Thermostat (2x0-10VDC) Thermostats_VAV/Fan Coil Thermostat (2x0-10VDC)

Product Code: SCT.2402
Product Color, White/Black
Outputs Type, 1 Pcs. 0-10V (Fan) / 1 Pcs. 0-10V Valve
Operating Buttons, Touch Button (Capacitive)
Communication, No
Display, BlackLCD Display
Supply Voltage, 24VAC/DC
Protect Class	, IP20 According to EN 60529 Standard
Measured Value , Temperature
For more information about the product;

VAV/Fan Coil Thermostat (2x0-10VDC)

SCT.2402 series room thermostats with touch button, 3.2” LCD screen are produced for EC fan fan coil units, VAV control units and devices that require 2x0-10 VDC output. It is the most preferred model in the thermostats class with its luxurious design and touch keys. With its ergonomic design, it is suitable for offices, hotels, hospitals and public buildings. It uses Modbus RTU communication for connection to Building Automation. Our SCT.2402 model provides 0-10V output signal to control EC fans. It can be stopped at the day and time interval determined by the clock and weekly time program. It has 24 VAC/VDC energy supply and surface mounting feature.

Technical Specification

Environmental Features
Operation, Storage Temperature0... +40°C/0... +50°C (No Condensation)
Protect ClassEN 60529 standardına göre IP 56
Packet
Mounting MethodWall mount
DimensionL86xW86xH40 mm
Weight140 gr
Electrical Spesification
Control2x0-10V Analog Sinyal
Relay Current Capacity
Heat Range0...+50°C
Supply24VAC/DC 50/60 Hz
Outputs2x0-10V (Max. 5mA)
Power ConsumptionMax 1VA
ConnectionTerminal Connektor 1,5 mm2
