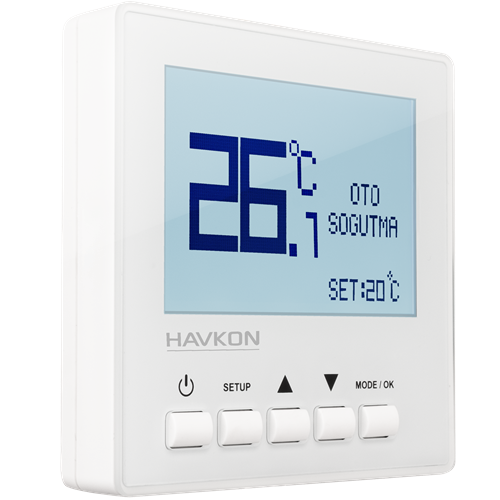

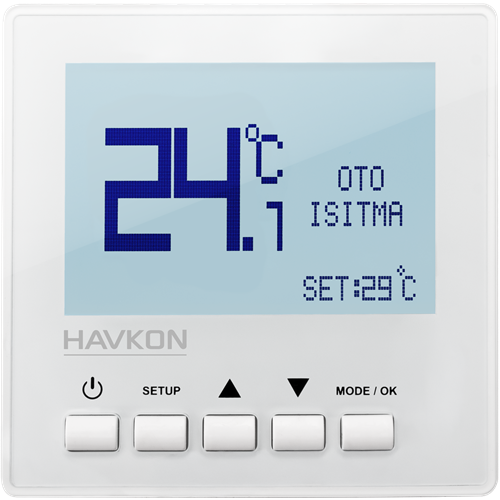

VAV/CO2 Thermostat Thermostats_VAV/CO2 Thermostat

Product Code: HCT.2401.CO2
Outputs Type, 0...100V/2...10V/0...20mA/4...20mA
Operating Buttons, Touch Button (Capacitive)
Measured Value , CO2(0...2000ppm)
Communication, Modbus-RTU
Product Color, White
Display, Graphic Display (128x64)
Supply Voltage, 24VAC/DC
Installation , Surface Mounted
Protect Class	, IP20 According to EN 60529 Standard
Weekly Program, Yes
For more information about the product;

VAV/CO2 Thermostat

VAV/CO2 thermostats with code HCT.2401.CO2 control VAV/CO2 with and 0-10V analog output to ensure the compliance of the space to the desired conditions. HCT.2401.COM series products are compatible with internal modbus-rtu protocol. In this way, it is possible to control more than one site from a single point via scada, hmi or plc. The graphic display has a user-friendly use with Turkish-English language selection. It has 24 V AC/DC supply and surface mounting features

Technical Specification

Environmental Features
Operation, Storage Temperature0... +40°C/0... +70°C (No Condensation)
Protect ClassEN 60529, IP20
Packet
Mounting MethodSurface Mounted
DimensionW86XH86xY40mm
Weight140 gr
Electrical Spesification
Control0-10V Analog Signal
Relay Current Capacity
Heat Range
Supply24VAC/DC 50/60 Hz
Outputs0-10V/2-10V/0-20mA/4-20mA
Power ConsumptionMax 1VA
ConnectionTerminal Connektor 1,5 mm2
