Measured Value , Temperature
Measured Value , No
Protect Class , IP20 According to EN 60529 Standard
Installation , Wall Mount
Supply Voltage, 230VAC
Display, Blue LCD Display
Product Color, White
Communication, No
Operating Buttons, Push Button
Outputs Type, 1 Pcs. VAV/Valve

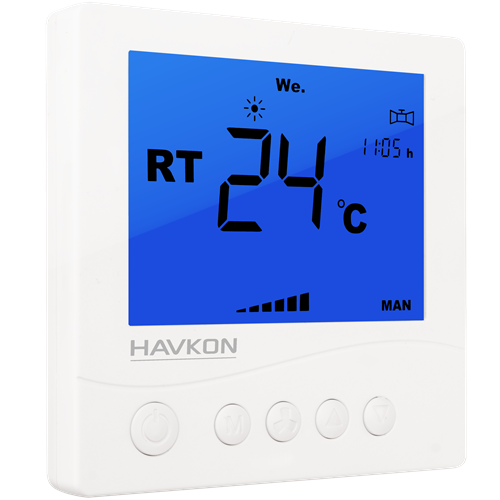

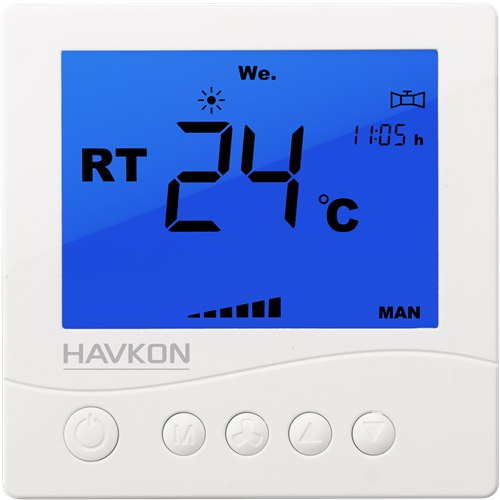

FCT.2310 series room thermostats with 3.2” LCD screen are produced for systems with internal temperature sensor, heating/cooling relay output. Our thermostats, which are an integral part of our daily life with their luxurious design, are suitable for offices, hotels, hospitals and public buildings with their ergonomic design. It has 230 VAC energy supply and surface mounting feature.
| Operation, Storage Temperature | 0... +40°C/0... +50°C (No Condensation) |
| Protect Class | EN 60529, IP20 |
| Mounting Method | Wall mount |
| Dimension | G86xY86xD40 mm |
| Weight | 140 gr |
| Control | 1pcs Relay Outputs |
| Relay Current Capacity | Max 1A |
| Supply | AC230V ±10% , 50/60 Hz |
| Power Consumption | Max 3VA |
| Connection | Terminal Connektor 1,5 mm2 |
