Ec Fan Fan Coil Thermostat Thermostats_Ec Fan Fan Coil Thermostat

Product Code: SCT.2321
Measured Value , Temperature
Measured Value , No
Protect Class	, IP20 According to EN 60529 Standard
Installation , Wall Mount
Supply Voltage, 230VAC
Display, BlackLCD Display
Communication, No
Operating Buttons, Touch Button (Capacitive)
Outputs Type, 1 Pcs. 0-10V (Fan) / 2 Pcs. Relay Valve
Product Color, White/Black
For more information about the product;

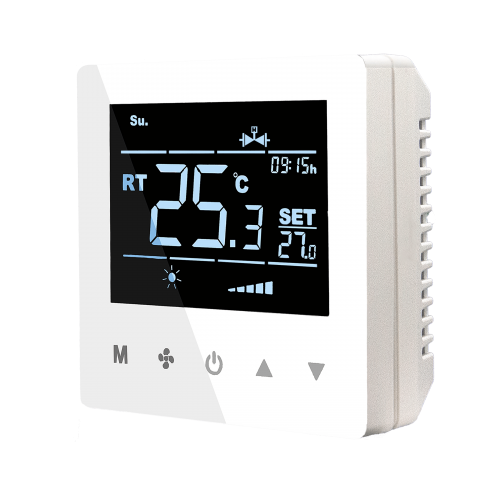

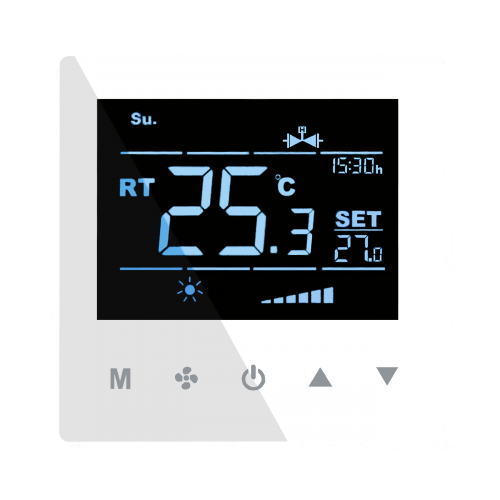

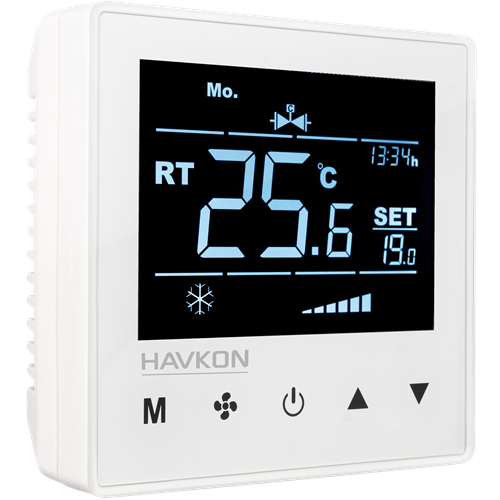

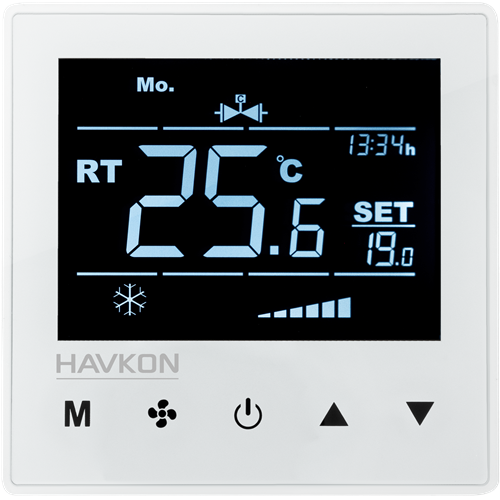

Ec Fan Fan Coil Thermostat

SCT.2321 with 3.2” LCD screen; It is produced forfancoil units with EC fan with touch button. With its luxury design and touch keys, it is the most preferred model in the smart thermostats class, which is an integral part of our daily life. With its ergonomic design, it is suitable for offices, hotels, hospitals and public buildings. It is designed and developed for use in 2 and 4 pipe systems. Our SCT.2321 model provides 0-10V output signal to control EC fans. It provides ease of use with its clock and weekly time program. It has 230VAC energ supply and surface mounting feature.

Technical Specification

Environmental Features
Operation, Storage Temperature0... +40°C/-25... +70°C (No Condensation)
Protect ClassEN 60529, IP00
Packet
Mounting MethodWall mounting with screws
DimensionL86xW86xH40 mm
Weight140 gr
Electrical Spesification
Control0-10V Analog Signal
Relay Current Capacity
Heat Range0 ... +50°C (No Condensation)
SupplyAC230V ±10% , 50/60 Hz
Outputs0-10V / 2 pcs Digital Relay
Power ConsumptionMax 1VA
ConnectionTerminal Connektor 1,5 mm2
