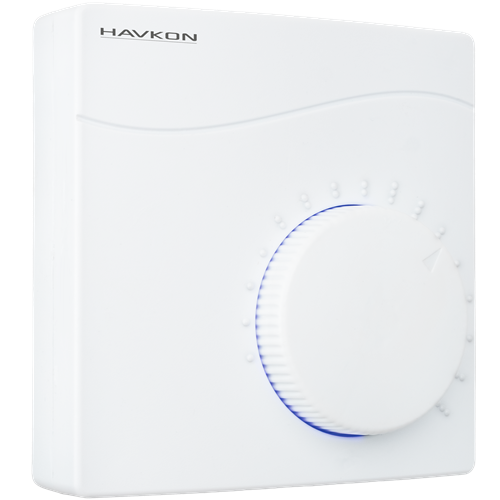

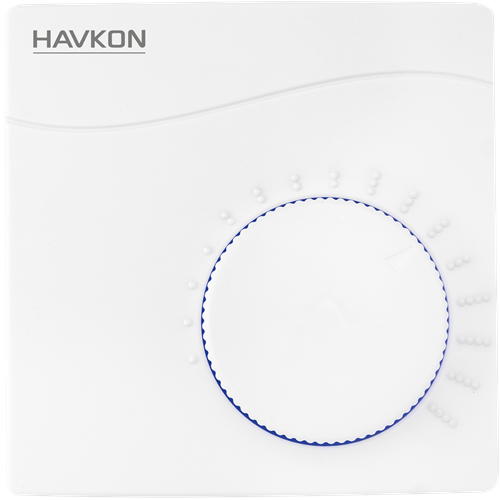

DFC Digital Mono phase controllers are designed for proportional control of single phase Fan Motors DFC Series Digital Single Phase Control devices are used in many fan speed control applications such as heat recovery devices, kitchen hoods, aspirators and fans, where small power resistive and inductive loads are manually controlled proportionally.,
Minimum/Maximum Fan Limit Setting
Fan Full Start / Fan Full Stop
Proportional Control
IP20 Box
Internal On/ Off Switch
Open/Close Blue Ambient Lighting
Reverse Potentiometer
| Operation, Storage Temperature | 0... +40°C/-25... +70°C (No Condensation) |
| Protect Class | EN 60529, IP20 |
| Mounting Method | Wall mounting with screws (without box) |
| Dimension | L100xW100xH56 |
| Weight | 160 gr |
| Supply | AC230V ±10% , 50/60 Hz |
| Power Consumption | Max 1VA |
| Connection | Terminal Connektor 1,5 mm2 |
