Touch Button Fancoil Thermostat Thermostats_Touch Button Fancoil Thermostat

Product Code: SCT.2332
For more information about the product;

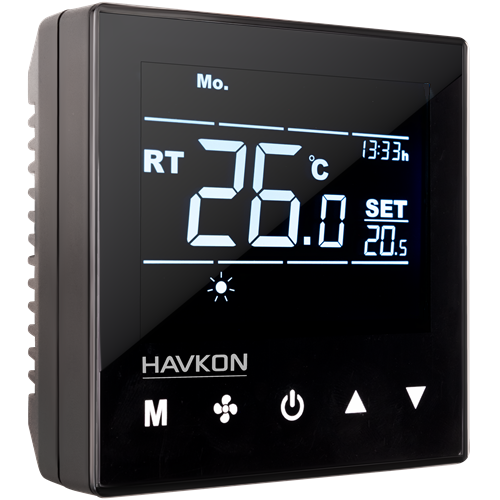

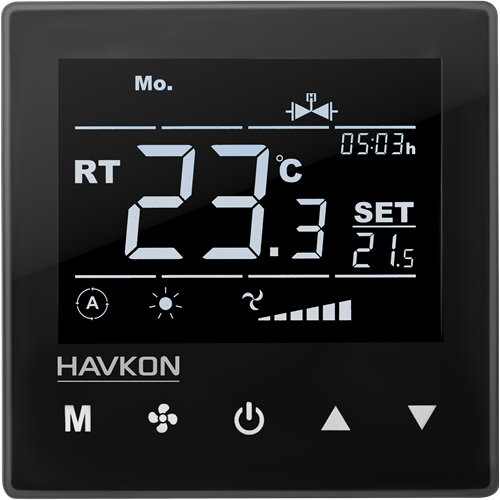

Touch Button Fancoil Thermostat

SCT.2332 series fancoil thermostats are produced with touch buttons and 3.2” LCD screen for fancoil units. The smart thermostat, which is an integral part of our daily lives with its luxurious design and touch-sensitive buttons, is the most preferred model in its class. With its ergonomic design, it is suitable for offices, hotels, hospitals and public buildings. It was designed and developed for use in 2 and 4 pipe systems. It uses Modbus RTU communication as the communication protocol for connection to Building Automation. Our SCT.2332 model provides 3pcs digital outputs to control fans and 2pcs 0-10V analog output signals for proportional valve control. It can be stopped at the day and time interval determined by the clock and weekly time program. It has a 230VAC power supply and surface mounting feature.

Technical Specification

Environmental Features
Operation, Storage Temperature0... +40°C/-20... +80°C (No Condensation)
Protect ClassEN 60529, IP00
Packet
Mounting MethodWall mounting with screws
DimensionL86xW86xH40 mm
Weight150gr
Electrical Spesification
Control2Pcs Analog / 3Pcs Digital Output
Relay Current CapacityMaks. 1A
Heat Range0...+50°C
SupplyAC230V ±10% , 50/60 Hz
Outputs2Pcs Analog 0-10V / 3Pcs Dijital
Power ConsumptionMax 1VA
ConnectionTerminal Connektor 1,5 mm2
