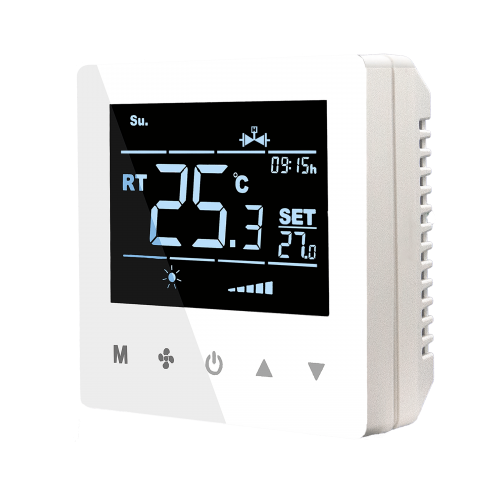

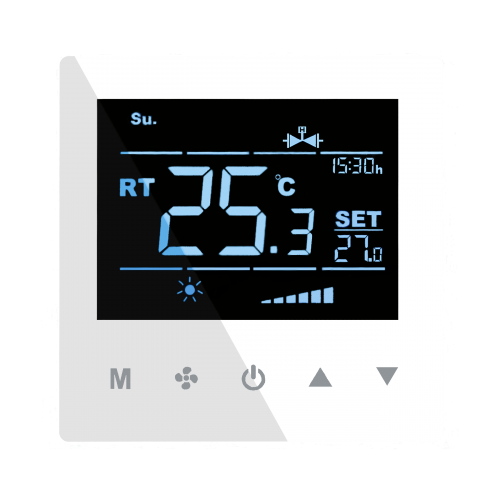

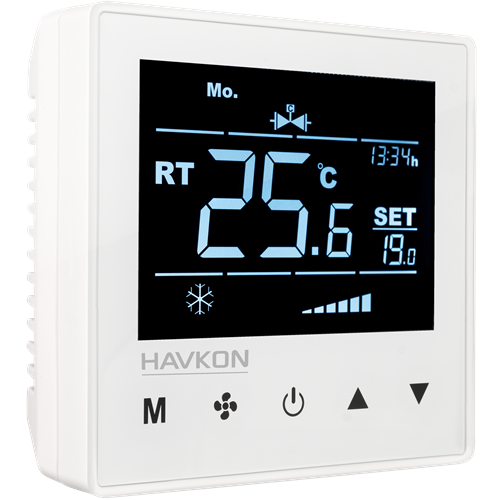

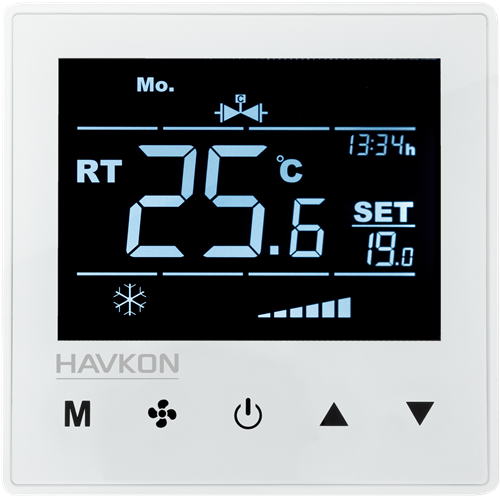

The newly developed SCT24 Series Thermostat by Havkon stands out with its advanced control features designed for modern HVAC applications.
Provides precise control of fan speed with 1 × 0–10V fan output.
Ensures reliable management of heating systems with 1 × 24V On/Off heating valve output.
Delivers efficient and flexible control in cooling circuits with 2 × On/Off cooling valve outputs.
With its compact design, user-friendly interface, and advanced functions that enhance energy efficiency, the SCT24 Series Thermostat is the ideal solution for climate control in offices, hotels, residences, and commercial buildings.
| Operation Temperature | 0... +50°C |
| Storage Temperature | -25... +70°C |
| Protect Class | IP20 |
| Mounting Method | Wall mounting with screws |
| Dimension | L86xW86xH40 mm |
| Weight | 140 gr |
| Control | 3pcs Relay Outputs 1pc Analog Output |
| Relay Current Capacity | Max 2A |
| Supply | 24VAC/DC ±10% |
| Outputs | 1 Ad. 0...10V Fan / 3 Ad. Relay for Valves |
| Power Consumption | Max 3VA |
| Connection | Terminal Connector 1.5 mm2 |
