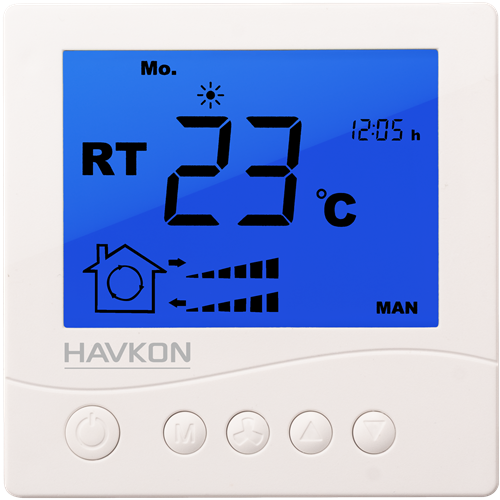

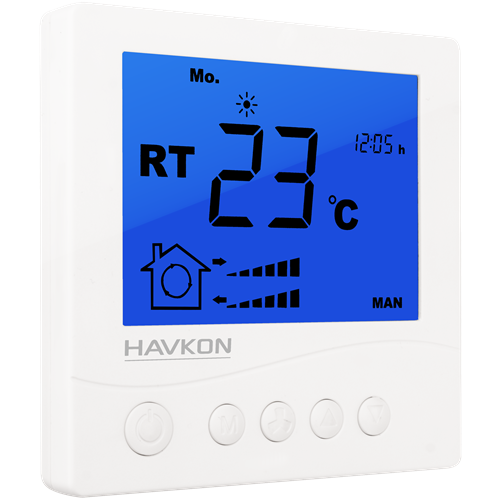

BCP.2021 HRU Control Panel

BCP.2021 Series Heat Recovery Unit Control Panels

The HAVKON BCP.2021 Series Control Panels are user-friendly, digital room control panels specifically designed for Heat Recovery Unit (HRU) systems. This series operates with full compatibility with HAVKON M1001.X, M1001.XS, M1002.X, and M1002.XS heat recovery controllers, enabling centralized and efficient control of all system functions from a single point.

Thanks to its 3.1” widescreen display, temperature, operating modes, fan stages, warnings, and fault conditions can be monitored clearly and in real time. The two-piece structure (Control Card + Room Panel) provides a flexible and secure control architecture for both field and user sides.

The BCP.2021 Series manages aspirator and ventilator fans with 6-stage speed control, supports automatic and manual operating modes, and accurately measures ambient temperature via its built-in NTC10K temperature sensor. With its weekly scheduling function, the system can be programmed to operate automatically on selected days and time intervals.

Key Features

·         3.1” widescreen display for clear and easy viewing

·         Two-piece control system (Control Card + Room Panel)

·         Automatic / Manual operation modes

·         Built-in NTC10K temperature sensor

·         Heater stage status indicators

·         Weekly time program

·         Keypad lock, screen brightness adjustment, and service menu

·         Modbus-RTU communication support

·         Easy installation and user-friendly menu structure

Technical Structure and Application Areas

The BCP.2021 Control Panels are designed for wall-mounted installation and provide long-term reliable operation with low power consumption (max. 1W). They are an ideal solution for the centralized and secure control of heat recovery systems used in:

·         Shopping malls

·         Office buildings

·         Hotels

·         Hospitals

·         Residential projects

·         Industrial facilities

Working together with the HAVKON M1001.X and M1002.X Series heat recovery units, the BCP.2021 Series:

·         Balances supply and exhaust air management,

·         Increases energy efficiency,

·         Enhances system safety,

·         Reduces operating and maintenance costs.
