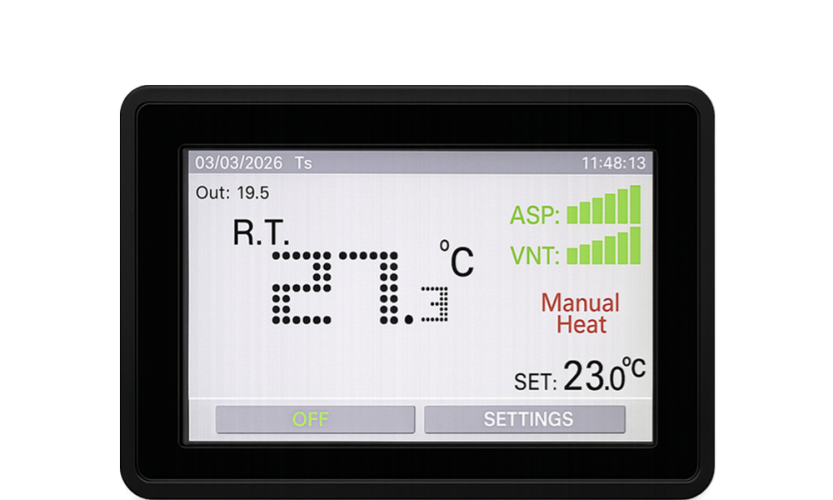

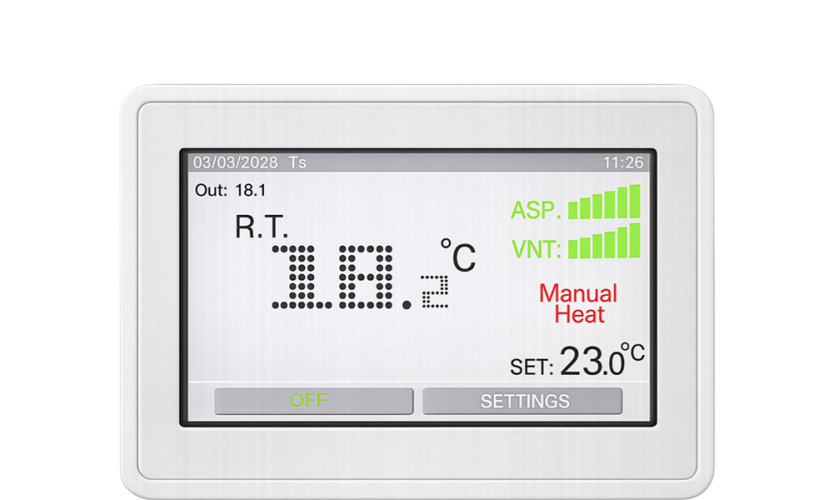

The Havkon TCP 3043 is a modern touch control panel designed specifically for HVAC and heat recovery unit ( applications, providing an intuitive user interface and reliable system control It enables users to monitor and manage key operating parameters easily through a clear and responsive display Equipped with a 4 3 color touch screen the device offers real time visualization of room temperature, setpoint operating mode, fan levels, and system status Its user friendly interface allows quick adjustments, ensuring efficient and comfortable operation in heat recovery ventilation systems TCP.3043 communicates with HVAC controllers via Modbus RTU (RS 485) allowing direct control and monitoring of heat recovery units (HRU/ERV systems) over the Modbus network The panel is designed to provide centralized operation for ventilation systems, including fan control, temperature management, scheduling, and alarm monitoring. Available in black and white housing options the device offers a modern appearance suitable for various commercial and residential installation environments
| Operation Temperature | 0... +40°C |
| Storage Temperature | -20... +70°C |
| Protect Class | IP20 |
| Packet | PC |
| Mounting Method | Room |
| Dimension | W128xH90xD20mm |
| Weight | 175 g |
| Supply | 24VDC ±10% |
| Power Consumption | Max. 3 W |
| Connection | Terminal Connector 1.5 mm2 |
