Mechanical Fan Coil Room Thermostat Thermostats_Mechanical Fan Coil Room Thermostat

Product Code: FCT.1041
For more information about the product;

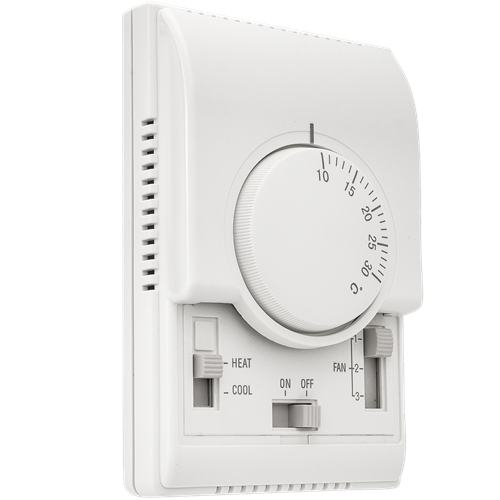

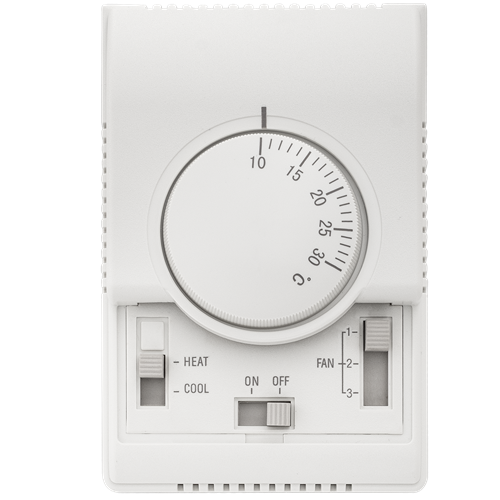

Mechanical Fan Coil Room Thermostat

It is a Havkon Thermostat that allows the user to control the fan coils with its ergonomic and stylish design. In this thermostat, which is seen as the interface between the system and the user, it is a thermostat where the user can choose the fan level setting, temperature level setting, hot-cold setting and turn it off at any time.





With the keys on it;


          Heating or cooling,


          3 Speed ​​thermostatic fan control,


          Precise temperature adjustment,


          It provides the possibility to turn it off directly when desired.





In our product with very high sensitivity, the Fan Coil room thermostat is the simplest device that can be used to manage the heating and allows you to turn the boiler on and off at the desired temperature. dir.


The Fan Coil Room Thermostat, which can be installed at a position of 150cm or higher from the floor, allows the temperature adjustment between 10C and 30C with the switch on it.


The Fan Coil Room Thermostat we produce is long-lasting thanks to its mechanical structure.





Usage areas:


          Business Centers Residences


          Light industrial buildings


          Zone valves


          Thermal valves


          Used with fans.





Functions:


          Heating: If the room temperature falls below the selected degree, heating is activated.


          Cooling: If the room temperature exceeds the selected temperature, cooling is activated.

Technical Specification

Environmental Features
Operation, Storage Temperature10°C-30°C [50°F-86°F]
Protect ClassIP20
Packet
Mounting Method
DimensionL130xW85xH40 mm
Weight200 g
Electrical Spesification
Control
Relay Current Capacity
Heat Range10°C-30°C [50°F-86°F]
Supply230 VAC ±10% , 50/60 Hz
Outputs230 VAC (Thermostatic)
Power Consumption
ConnectionTerminal Block 0,5.....1,5 mm2
